Current clamp 1000A, iFlex + Ext. Display

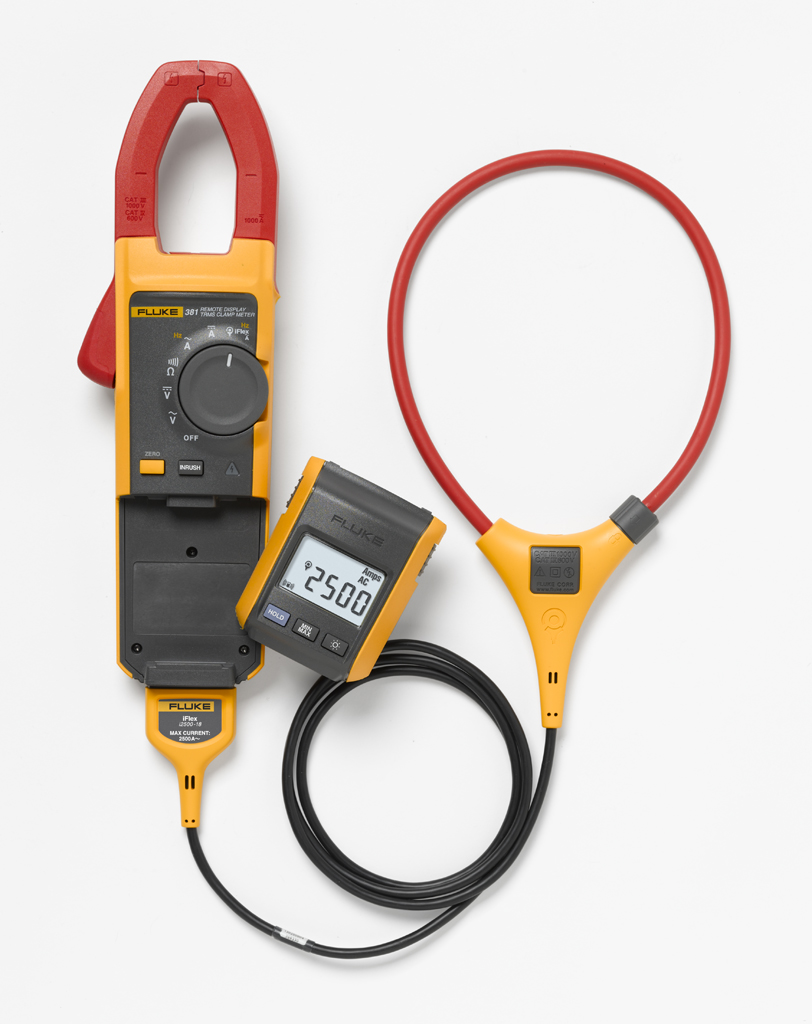

The new Fluke 381 not only meets all your expectations for a current clamp, but its display can also be detached for even more flexible use.

Now, one technician can accomplish what previously required two people. The Fluke 381 current clamp is clamped around a conductor, and the display module is removed.

and goes to the other end of the room to operate control systems or to remove his protective clothing, while constantly reading measurements in real time.

The new flexible iFlex current clamp (included in the scope of delivery) extends the measuring range to 2500 A AC current and offers you more flexibility when measuring on awkwardly shaped conductors and when accessing cables.

functions

• Thanks to the wireless transmission of the measured values, the display module can be placed up to 10 m away from the measuring point, thus giving you even more flexibility.
• The removable, magnetic display module can be easily placed or hung wherever it is best viewed.
• The flexible iFlex current clamp extends the measuring range to 2500 A AC.
• CAT IV 600 V, CAT III 1000 V
• Thanks to the integrated low-pass filter and modern signal processing, measurement results remain stable even in environments with strong electromagnetic interference.
• The inrush current measurement technology developed by Fluke filters out noise and captures the inrush current exactly as the protection device sees it.
• Thanks to their ergonomic design, the current clamps fit comfortably in the hand and can be used effectively even when wearing protective equipment.
• The most suitable measuring range is automatically selected by the radio transmitter so that the switch position does not need to be changed during measurement.
• 3-year warranty
• padded carrying case

Security

EN/IEC 61010-1:2001; 1000V CAT III, 600V CAT IV
