Multimeter

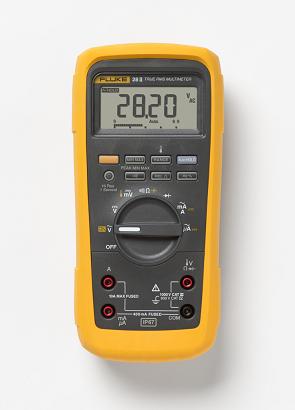

The new Fluke 27 II and 28 II digital multimeters set new standards in terms of use under adverse conditions and have the necessary accuracy for troubleshooting electrical systems.

Both measuring devices are specified according to IP 67 (waterproof and dustproof) and are registered for MSHA approval.

The extended operating temperature range is between -15 °C and +55 °C for up to 20 minutes;

The devices are designed for 95% humidity and have been developed and tested to withstand a 3-meter drop without any problems. The new Fluke 20 Series multimeters are designed for use in harsh environments.

functions

• Measurement of DC and AC voltages up to 1,000 V
• Measurements up to 10 A (20 A for 30 seconds)
• Capacitance range: 10,000 µF
• Frequency up to 200 kHz
• Extended bandwidth for AC voltage measurement: 15 Hz to 20 kHz (28 II), 40 Hz to 30 kHz (27 II)
• Thanks to an integrated thermometer, you can easily take temperature measurements without having to carry a separate thermometer (28 II).
• Resistance measurement, continuity test and diode test
• Min/Max and average value recording for automatic recording of deviations
• Peak value measurement min-max (28 II)
• Unique function for precise voltage and frequency measurements on variable speed motor drives where harmonics superimpose on the fundamental frequency (28II).
• Waterproof and dustproof according to IP 67, completely sealed, for use in harsh environments
• Designed to survive a 3-meter drop (with holster)
• High-resolution display mode for 20,000 digits (28 II)
• True RMS measurement of voltage and current for precise measurements of non-sinusoidal signals (28 II)
• Average measurement of voltage and current during measurements (27II)
• Improved readability even in dark environments thanks to backlit keys
• Improved readability thanks to large display digits and two-stage bright backlighting
• Additional protection is provided by inserting the device upside down into the holster when not in use.
• Resistant to dangerous voltage spikes of up to 8,000 V that can occur when switching loads and due to circuit faults in industrial plants.
• Long battery life (800 hours)
• Relative value mode for subtracting the measuring lead resistance in low-resistance measurements
• Automatic and manual range selection for maximum flexibility
• Easy reading and setup thanks to the optional magnetic holder. Your hands remain free for other tasks.
• MSHA approval for mining applications
