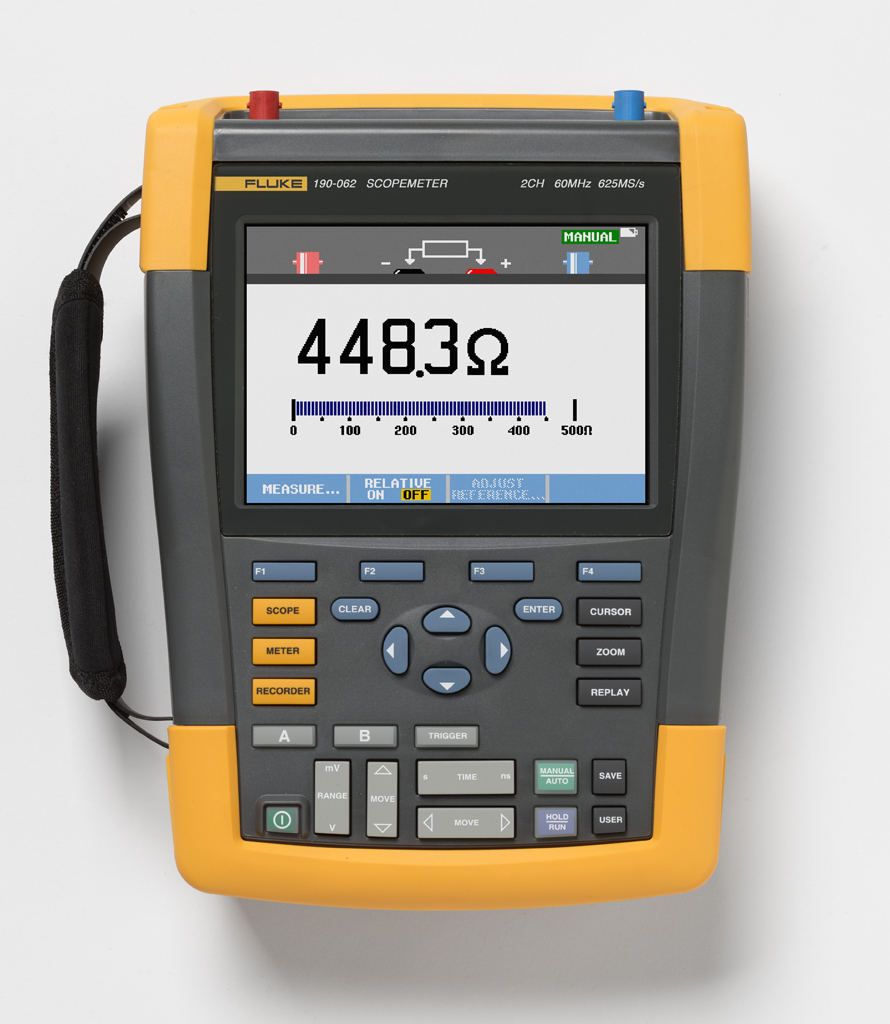

ScopeMeter II 2Ch, 60MHz, 625MS, DMM

The new Fluke ScopeMeter® 190 II series combine an unprecedented level of performance with robustness and portability.

And these are the first portable two- and four-channel oscilloscopes with the safety specification CAT III 1000 V/CAT IV 600 V.

Available models offer 60, 100 or 200 MHz bandwidth, all with real-time sampling rates up to 2.5 GS/s and a resolution of 400 ps.,

so that fast noise and other interference signals can also be recorded.

All models feature deep memory with up to 10,000 samples per channel, allowing you to examine even very small parts of the signal waveform in detail.

Thanks to the IP 51 protection rating, they are also protected against dust, dripping water, moisture and large temperature fluctuations.

Fluke ScopeMeter series handheld test tools are battery-powered, making them ideal companions for service professionals in the field.

functions

• Two or four electrically isolated inputs
• Safety specifications CAT III 1000 V / CAT IV 600 V
• Models with 60, 100 or 200 MHz bandwidth
• High sampling rate: up to 2.5 GS/s with a resolution of up to 400 ps
• Deep memory: Signal shape acquisition with 10,000 samples per channel, enabling zoom in on details.
• Integrated digital multimeter with 5000 digits on 2-channel models
• Quadruple measurements via BNC oscilloscope inputs on 4-channel models
• Continuous automatic triggering with Connect-and-View, single-shot, pulse duration and video triggering
• ScopeRecord: Recording of waveform sample data for up to 48 hours
• TrendPlot: Paperless plotter function for up to 22 days of trend measurements
• Extensive automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• Protection class IP 51 for dust and dripping water protection for use in harsh environments
• Isolated USB ports for storage devices and PC connection
• Li-ion battery for longer operating time
• 190-X04, 4-channel models up to 7 hours (BP291 included as standard)
• 190-XX2, 2-channel models up to 4 hours (BP290 included as standard) or up to 8 hours with optional BP291
• The reserve battery can be charged using the optional external charger EBC290.
• Easily accessible battery compartment for simple battery replacement
• Practical device on the housing for securely attaching and locking the oscilloscope when it cannot be attended (commercially available Kensington® Lock shape)
• Four times the diagnostic performance plus CAT IV safety specification
• The new Fluke ScopeMeter 190 II series handheld devices are double-insulated two- and four-channel oscilloscopes for potential-free measurements in accordance with safety specifications CAT III 1000 V/CAT IV 600 V.
• Three-dimensional testing for industrial systems »
• Problem detection through simultaneous display of input signals, signals from feedback loops, or safety interlocks:
• Overload caused by excessively high voltages and currents in electrical circuits
• Signal propagation time and synchronization problems
• Mismatches in damping and impedance
• Signal changes and drift
