MegOhm Meter

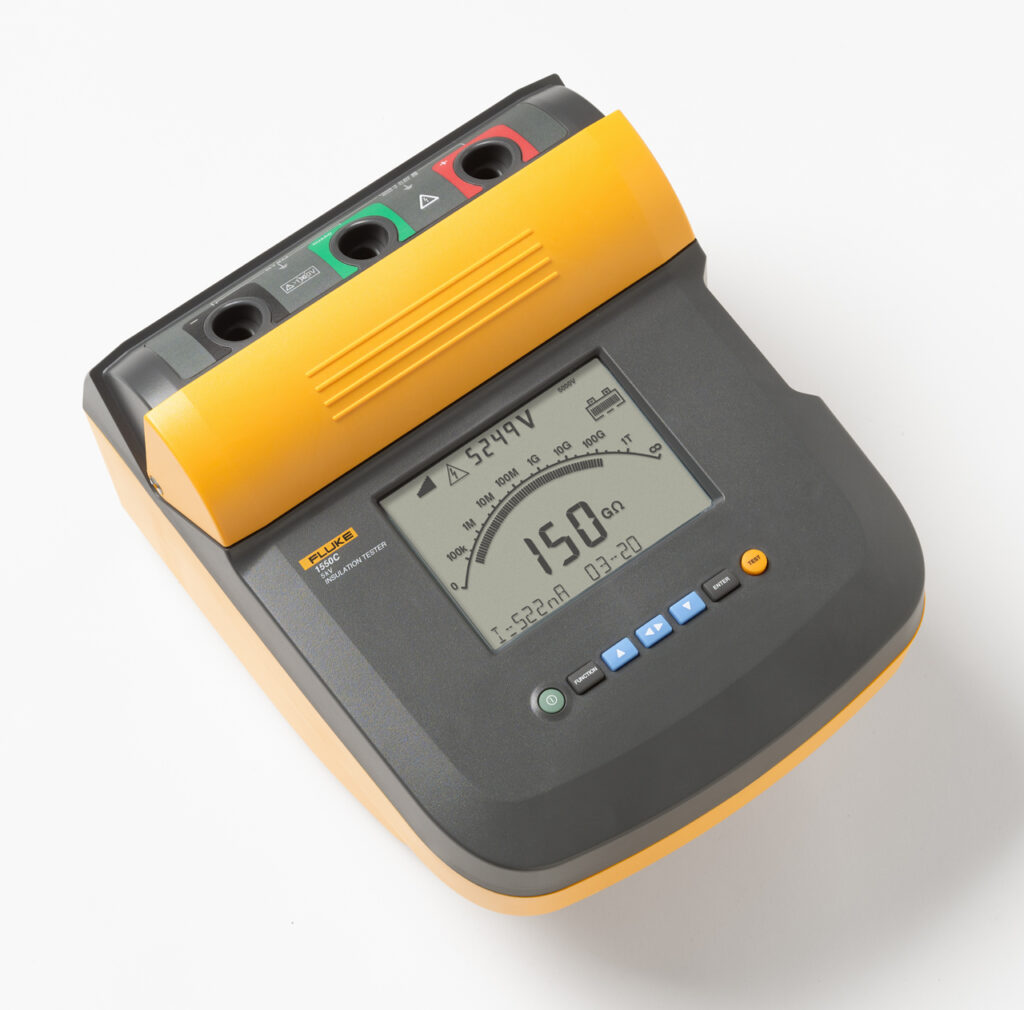

The new Fluke 1555 insulation tester and the redesigned Fluke 1550C tester are suitable for insulation testing up to 10 kV.

This makes them the ideal devices for testing high-voltage equipment such as switchgear, motors, generators and cables.

Fluke insulation testers can now test all voltages specified in IEEE 43-2000.

They come with a 3-year warranty and meet the CAT IV safety specification, 600 V.

With data storage and PC interface, the Fluke 1555 and 1550C models are perfect tools.

for predictive or preventive maintenance, because they detect potential equipment failures before they occur.

functions

• Solutions for all applications with high test voltages: 1555 up to 10 kV, 1550C up to 5 kV
• Safety specification according to CAT III 1000 V, CAT IV 600 V
• Increased user safety through a warning indicator in case of high voltage and through automatic display of AC or DC voltage up to 600 V
• Test voltage selectable from 250 V to 1000 V in 50 V increments, above 1000 V in 100 V increments.
• Up to 99 memory locations for measured values; each memory location can be assigned a unique, user-defined label for easy retrieval.
• Long operating time: over 750 tests between battery charging cycles
• Automatic calculation of dielectric absorption (DAR, characteristic value for the unwanted charge storage of the dielectric)

and the polarization index

• Protection system eliminates static voltages and leakage currents when measuring high resistances
• Easy readability thanks to large digital/analog display
• Capacitance and leakage current measurement
• Ramp function for dielectric strength tests
• Resistance measurements up to 2 TOhm
• Timer settings up to 99 minutes for timed exams
• 3-year warranty
