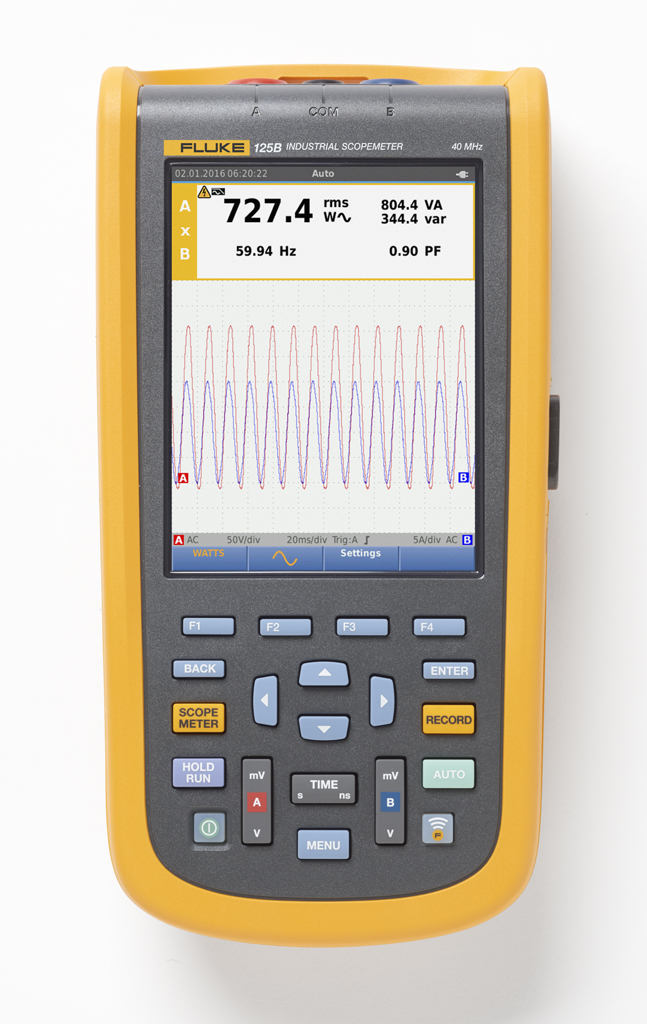

Industrial Scope Meter (40 MHz)

The compact and rugged ScopeMeter® 120B Series oscilloscopes offer solutions for troubleshooting electromechanical equipment and maintenance. These fully integrated, user-friendly instruments combine an oscilloscope, a multimeter, and a fast data recorder in a single unit. ScopeMeter 120B Series instruments are also compatible with the Fluke Connect® app and FlukeView® for ScopeMeter software, enabling even more comprehensive collaboration, data analysis, and archiving of critical information.

functions

• Digital dual-channel oscilloscope and multimeter
• Oscilloscope bandwidth of 40 MHz or 20 MHz
• Dual-channel true-RMS digital multimeter with a display range of 5000 counting steps
• Easy operation thanks to the Connect-and-View™ automatic triggering system.
• IntellaSet™ technology automatically and intelligently adjusts the numerical display based on the measured signal.
• Dual-channel waveform and measurement data recorder for trend display of data over longer periods
• -The "Recorder Event Detect" function detects hard-to-capture intermittent signals in repeating signal forms up to 4 kHz.
• Shielded pair of measuring leads for all oscilloscope, resistance and continuity measurements
• Resistance, continuity, diode and capacitance measurements
• Power and power factor measurements (W, VA, VAR, cos f, Ω, Hz)
• Voltage, current, and power harmonics
• Testing of industrial networks with bus stability tests on the physical layer using defined reference levels
• Saving or retrieving data and device settings
• Saving device settings that are used as test sequences for routine maintenance or for frequently used measurements.
• Optically isolated USB interface for transferring, archiving and analyzing oscilloscope and multimeter data
• Optional Wi-Fi adapter connected via the internal USB port for wireless data transfer to PCs or the Fluke Connect® app*
• ScopeMeter® software FlukeView® for Windows®
• Robust design ensures resistance to vibrations up to 3 g and impacts up to 30 g, IP protection class IP 51 according to EN/IEC 60529
• Highest safety specification for portable oscilloscopes: Overvoltage category CAT IV 600 V according to EN/IEC 61010-1
• Li-ion battery, seven hours operating time (with a charging time of 4 hours)
